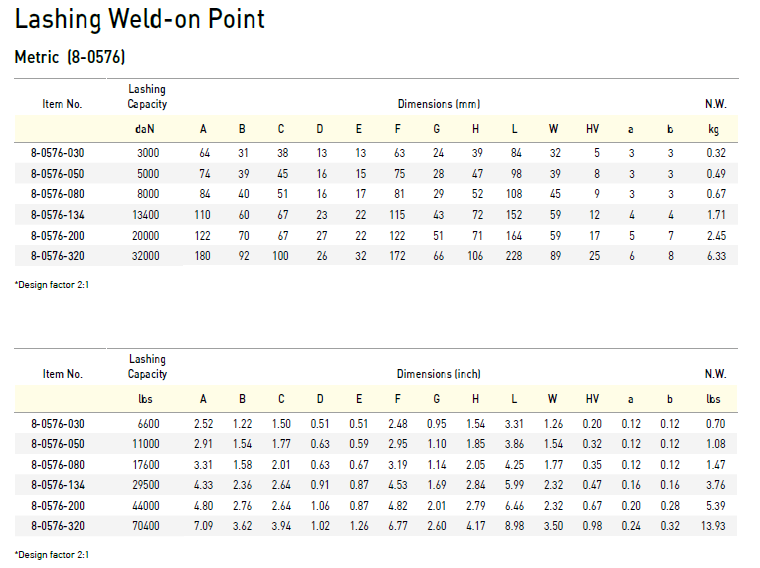

Item No.

Lashing Capacity (daN)

A

B

C

D

E

F

G

H

L

W

HV

a

b

N.W. (kg)

8-0576-030

3000

64

31

38

13

13

63

24

39

84

32

5

3

3

0.32

8-0576-050

5000

74

39

45

16

15

75

28

47

98

39

8

3

3

0.49

8-0576-080

8000

84

40

51

16

17

81

29

52

108

45

9

3

3

0.67

8-0576-134

13400

110

60

72

22

22

115

43

72

152

59

12

4

4

1.71

8-0576-200

20000

122

70

77

27

22

122

51

71

164

59

17

5

7

2.45

8-0576-320

32000

180

92

100

26

32

172

66

106

228

89

25

6

8

6.33

Item No.

Lashing Capacity (lbs)

A

B

C

D

E

F

G

H

L

W

HV

a

b

N.W. (lbs)

8-0576-030

6600

2.52

1.22

1.5

0.51

0.51

2.48

0.95

1.54

3.31

1.26

0.2

0.12

0.12

0.7

8-0576-050

11000

2.91

1.54

1.77

0.63

0.59

2.95

1.1

1.85

3.86

1.54

0.32

0.12

0.12

1.08

8-0576-080

17600

3.31

1.58

2.01

0.63

0.67

3.19

1.14

2.05

4.25

1.77

0.35

0.12

0.12

1.47

8-0576-134

29500

4.33

2.36

2.84

0.87

0.87

4.53

1.69

2.83

5.98

2.32

0.47

0.16

0.16

3.77

8-0576-200

44000

4.8

2.76

3.03

1.06

0.87

4.8

2.01

2.79

6.46

2.32

0.67

0.2

0.28

5.39

8-0576-320

70400

7.09

3.62

3.94

1.02

1.26

6.77

2.6

4.17

8.98

3.5

0.98

0.24

0.31

13.96
